nROK 1030
Intel Atom? x6211E Dual-Core Processor Fanless Rolling Stock Computer- 主要特點
- Intel Atom? x6211E dual-core processor, 6W
- Compact and fanless design
- 5G NR and Wi-Fi 6/6E wireless communication options
- Built-in GNSS receiver
- Built-in 1 x CAN bus 2.0B (optional SAE J1939)
- Smart power management with Ignition on/off delay via software control and low voltage protection
- Dual display outputs and 2.5GbE LAN ports
- 1 x mini-PCIe + 2 x M.2 socket expansion
- Certified by CE, FCC, EN 50155 class OT4

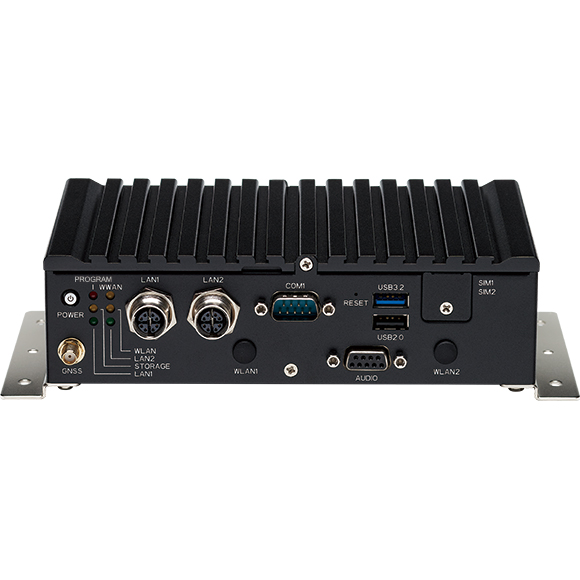

nROK 1030, a compact, rugged and entry-level vehicle computer with Intel Atom® x6211E dual-core processor 1.3GHz/3GHz (burst), is designed for the harsh in-train environment. Because of the compact design, it is especially for the vehicles with limited space to locate the computer system, but without compromising with its space to scarify its features.
nROK 1030 has onboard CAN 2.0B for vehicle diagnostics and driver behavior management. An advanced GNSS receiver supports GPS/Glonass/QZSS/Galileo/Beidou. nROK 1030 features optional WLAN Wi-Fi 6/6E/Wi-Fi 5 and WWAN 5G NR/LTE wireless data connectivity. With external micro-SIM socket, it allows user to access micro-SIM card conveniently. 12VDC output can be provided for external display with easy power wire arrangement. nROK 1030 keeps the flexibility to meet different demands for rolling stock applications, such as wireless gateway, infotainment, digital radio data/voice transmission system.
