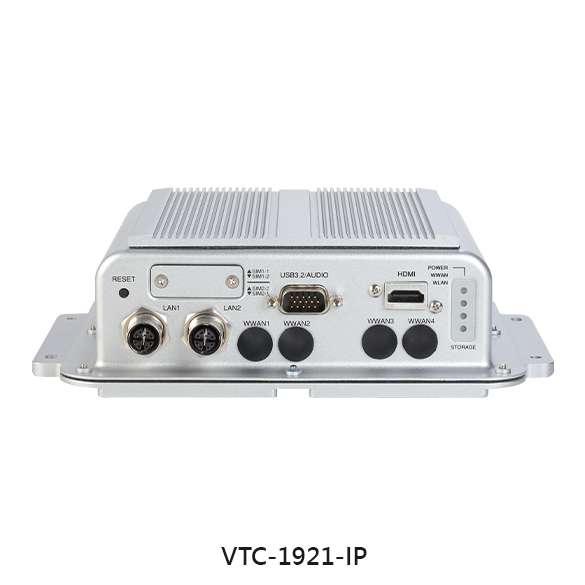

VTC 1921-IP / VTC1921-C2IP

 超薄堅固耐用設計 Intel Atom? processor x7211RE 車載物聯網 Gateway
  • 主要特點
  • IP67 防護堅固耐用設計
  • 內建 1 x CAN FD, 1 x CAN 2.0B
  • 內建 U-blox M9N GNSS
  • 四個 SIM 卡用于 WWAN 模塊
  • 智能電源管理，可透過軟件控制啟動開/關延遲和低電壓保護
  • 2 個 PoE 802.3 af/at 埠，總功率最高達 30W（VTC1921-C2IP）
  • 通過 CE/ FCC/ E13/EN50155/EN45545-2 認證
加入查詢
產品型錄(PDF)
CPU  Intel Atom? processor dual-core x7211RE/1.0GHz
Memory  1 x DDR4 3200 SO-DIMM, up to 32GB, default 4GB
Storage  1 x mSATA (occupy one mPCIe slot)  1 x 2.5” SSD (VTC1921-IP only) 1 x M.2 Key M 2280 for SATA 3.0
(on daughter board of VTC1921-C2IP)
Expansion  1 x Mini PCIe slot (USB 2.0, PCIe 3.0) 1 x M.2 Key B 3042/3050/3052 (USB 2.0, USB 3.2 Gen 2)
- Support LTE/ 5G NR module with 2 x external nano-SIM  1 x M.2 2230 Key E (USB 2.0, PCIe 3.0) for Wi-Fi
Function 1 x U-blox NEO-M9N onboard
- Support GPS/Glonass/QZSS/Galileo/ BeiDou  Built-in 3D accelerometer and 3D gyroscope TPM 2.0
I/O Interface-Front  4 x LED for power, WWAN, Wi-Fi, storage  4 x nano-SIM socket with cover  2 x 2.5GbE M12 A-code port (only one LAN in VTC1921-C2IP) 1 x DB15 connector (male, waterproof)
- 1 x USB 3.2
- 1 x Mic in (L/R)
- 1 x Line out (L/R) 1 x HDMI (waterproof) 4 x Antenna hole for WWAN
I/O Interface-Rear  1 x M12 circular power connector (ignition, power, GND) 1 x M12 A-coded connector (Multi1 port)
- 2 x RS-232 (TX/RX)
- 1 x RS-485 (TX/RX)
- 4 x DI, 4 x DO 1 x M12 A-coded connector (Multi2 port)
- 1 x USB 2.0
- 1 x CAN FD (w/ isolation)
- 1 x CAN 2.0B (w/ isolation)
- 1 x DR  5 x Antenna hole for WWAN/WLAN/GPS 2 x 2.5GbE M12 X-coded PoE port, 802.3af/at, total up to 30W
(VTC1921-C2IP only)
Operating System Windows 10, 64bit Windows 11 Linux 4.x
Dimensions  185mm (w) x 167mm (D) x 56.5mm (H) (7.28” x 6.57” x 2.22”) Weight: 1.1kg (2.42bs)
Environment Temperature
- Operating temperatures: -40°C~70°C for vehicle
- Operating temperatures: -40°C~70°C (OT4) for railway
- Storage temperatures: -40°C~85°C
- Damp heat test per EN60068-2-30 Humidity
- IEC60068-2-78, damp heat steady state test, 40°C, 95%, 48Hrs Vibration
- IEC 60068-2-64, 2G
- Operating: MIL-STD-810H, 514.8C Procedure 1, Category 4
- Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24 Shock
- MIL-STD-810H, 516.8 Procedure I, trucks and semi-trailers=40g
- Crash hazard: Procedure V, ground equipment=75g
Certifications CE FCC Class A E13 EN50155 EN45545-2
