Edge AI Mobile Computer and Supercapacitor UPS Clinch
2025 Taiwan Excellence Award NEXCOM's Edge AI mobile computer for in-vehicle an...

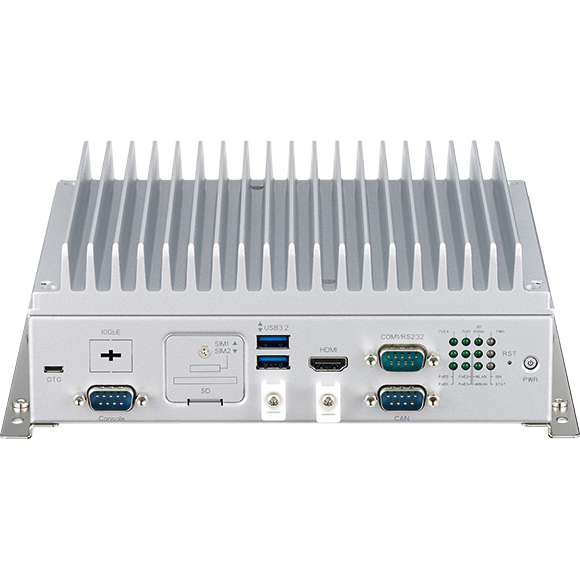

ATC 3750-6C
NVIDIA? Jetson AGX Orin? Solution Performance Edge AI Computing- 主要特點
- Built-in NVIDIA? Jetson AGX Orin? SOM, up to 200/275 TOPS (INT8) performance
- Designed with rugged, compact and hybrid cooling solutions
- 6-port GbE PoE+ for IP CAM/LiDAR sensors, optional 1-port 10GbE
- HEVC/H.265 hardware DECODE up to 7 x 4K30 performance
- Wide range operating temperature of -20°C~70°C
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
- Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
- 9~36V DC-IN with ignition control & OCP/OVP
- NEXCOM Acceleration Linux (NAL) integrated w/ JetPack 6.0
- Military standard of MIL-STD-810H for anti-vibration/shock
- CE/FCC, UKCA, E-mark Certified
AI has become an essential component of automated vehicle technologies. With its built-in high performance NVIDIA® Jetson AGX Orin™ SOM, the ATC 3750 can deliver up to 200/275 TOPS workload on Artificial Intelligence (AI) processing and inference, supporting applications such as ADAS in Transportation/Construction, ANPR, AMR, Machine Learning (ML), ITS and factory automation.
To operate the workload with 200/275 TOPS in harsh environments, the user can add an extractor fan kit to enable hybrid heat dissipation. The fan can be controlled depending on the operating temperature and the corresponding processors TDP (15W~60W).
The ATC 3750 is a rugged, compact-size in-vehicle AI powered computer that features 9~36VDC with IGN control, 6 PoE+ for accessing IP CAM/LiDAR sensors, and rich peripheral ports, USB 3.2, isolation CANBus, RS232, Console, DI/DO, OTG and HDMI, With the installation of 5G NR, Wi-Fi 5/6 modules, the ATC 3750 can collaborate with CPS for AI model re-training, making it suitable for deployment in sophisticated application such as ADAS/ANPR/AI-aided ITS/Construction, etc. In harsh environments, the ATC 3750 can operate at a wide temperature range of -20~70°C and meet the MIL-STD-810H military standard for anti-vibration and shock. For regulation, the ATC 3750 is certified by CE/FCC Class A, UKCA and E-mark (E13).
