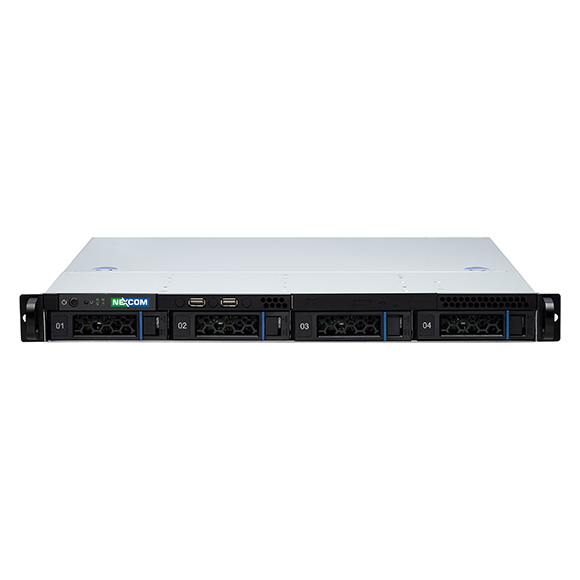

NViS 5704
1U Rack Workstation NVR with 13th/12th Gen Intel? Core? Platform- 主要特點
- System 1U rackmount
- 12th/13th Gen Intel? Core?
- 4-Bay 3.5" HDD (support RAID 0, 1, 5, 10)
- 1 x NVME SSD, 1 x M.2 2242 SATA SSD
- DisplayPort 1.4, HDMI 2.0b x 1, HDMI 1.4 x 1
- DDR4 up to 64GB
- 2 x 2.5 GbE Intel? Ethernet
- Audio in/out/Mic
- PCIe Express x16
The NVR NViS 5704 is equipped with 13th Gen Intel® Core™ Processor Series, up to 16 core with performance-core for 8 and efficient core for 8, performance core support basic frequency at 2.4GHz max turbo bust at 5.0GHz, and efficient core support basic frequency at 1.8GHz max turbo bust at 3.8GHz, which supports up to 64GB DDR4 3200MHz memory, display support DisplayPort 1.4, HDMI 2.0b and HDMI 1.4 utilized Intel® UHD Graphics 770 controller in real-time display. Moreover, NViS 5704 provides high quality digital stream recording alone with four 3.5” HDD supporting raid 0,1,5,10 and integrated SSD support for both NVME and M.2 interfaces. In addition, NViS 5704 supports a wide variety of display I/O configurations, including two Intel® 2.5GbE port, two USB 2.0, four USB 3.1 Gen1, audio interfaces, beside it can add on full length PCIe Express card to support stream accelerator and AI purpose.
